Equipment

ChamSys MagicQ MQ80

Width: 750mm (29.5 inches)
Depth: 350mm (13.7 inches)
Height: 600mm (23.6 inches)
Weight (console in flightcase): 20kg
Quantity: 1 pcs

Category:
Description

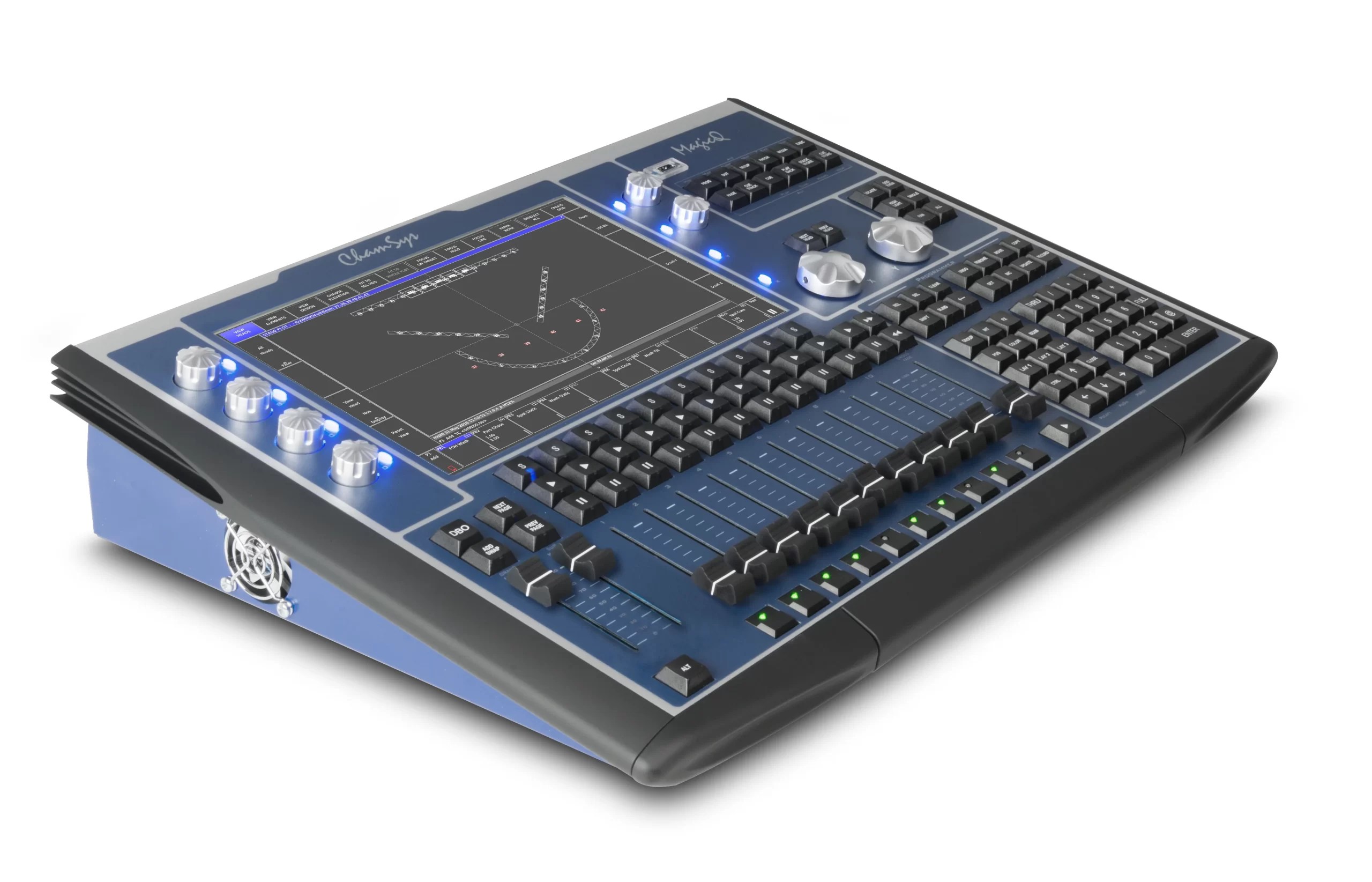

ChamSys MagicQ MQ80

Credo Group provide ChamSys MagicQ MQ80 for rent in Baku, Azerbaijan.

We are providing for rent light consoles and light fixtures. Please visit our LIGHT category

The MagicQ MQ80 is an extremely powerful console in a small size, supporting 48 universes direct from the console and 4 DMX ports supporting RDM, but still fits with in checked luggage restrictions.

It has a large 12” high resolution display provides easy access to all MagicQ features including the Plot window where fixtures can be selected and focused graphically.

MagicQ MQ80 features the same software found on all MagicQ consoles, and uses the same show file formats, enabling compatibility between all MagicQ products. MagicQ MQ80 can be connected over network to a PC or Mac running the free ChamSys free MagicVis lighting visualisation software, or MagicHD media player software (for output of up to 8 layers of HD media) at no extra cost.

The construction of the MagicQ MQ80 incorporates high reliability components, including durable metal Neutrik locking connectors.  The inbuilt 4 port Ethernet switch is protected by the UPS, thus ensuring that both the console and the network switch maintain operation even during a power loss.

The console features a Kensington security slot for securing the product. Both soft bags and flight cases are available as optional extras.

ChamSys MagicQ MQ80 rent in Baku, Azerbaijan. Light console rental. Light fixture rental. We are providing for rent light consoles and light fixtures.

Hardware Specifications:

  • Universes direct from the console (via Artnet/sACN/Pathport): 48*
  • Direct DMX Outputs: 4
  • RDM Support: Yes
  • Playbacks: 10
  • Grand Master Fader: 1
  • Sub Master Fader: 1
  • Crossfade Master Fader: 1
  • Attribute Encoders: 8
  • Network Ports: 4
  • Inbuilt 12” Display: 1
  • External Monitor up to 1920×1200 Resolution – HDMI: 1
  • USB Ports: 6
  • Audio Input (1 channel, 7 band): Yes
  • MIDI Ports (In and Out: Yes
  • Remote input port: Yes
  • LTC Timecode In Port: 1
  • Remote Input Port: 1
  • Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
  • Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:

  • Max Number of DMX Channels: 24576
  • Max Number of Fixtures Supported: 24576
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096
  • Number of Media Server Layers Supported: 50 (each different content)
  • Numbers of Shows: Virtually unlimited
